Insulated Temporary Warehouse
Insulated Storage

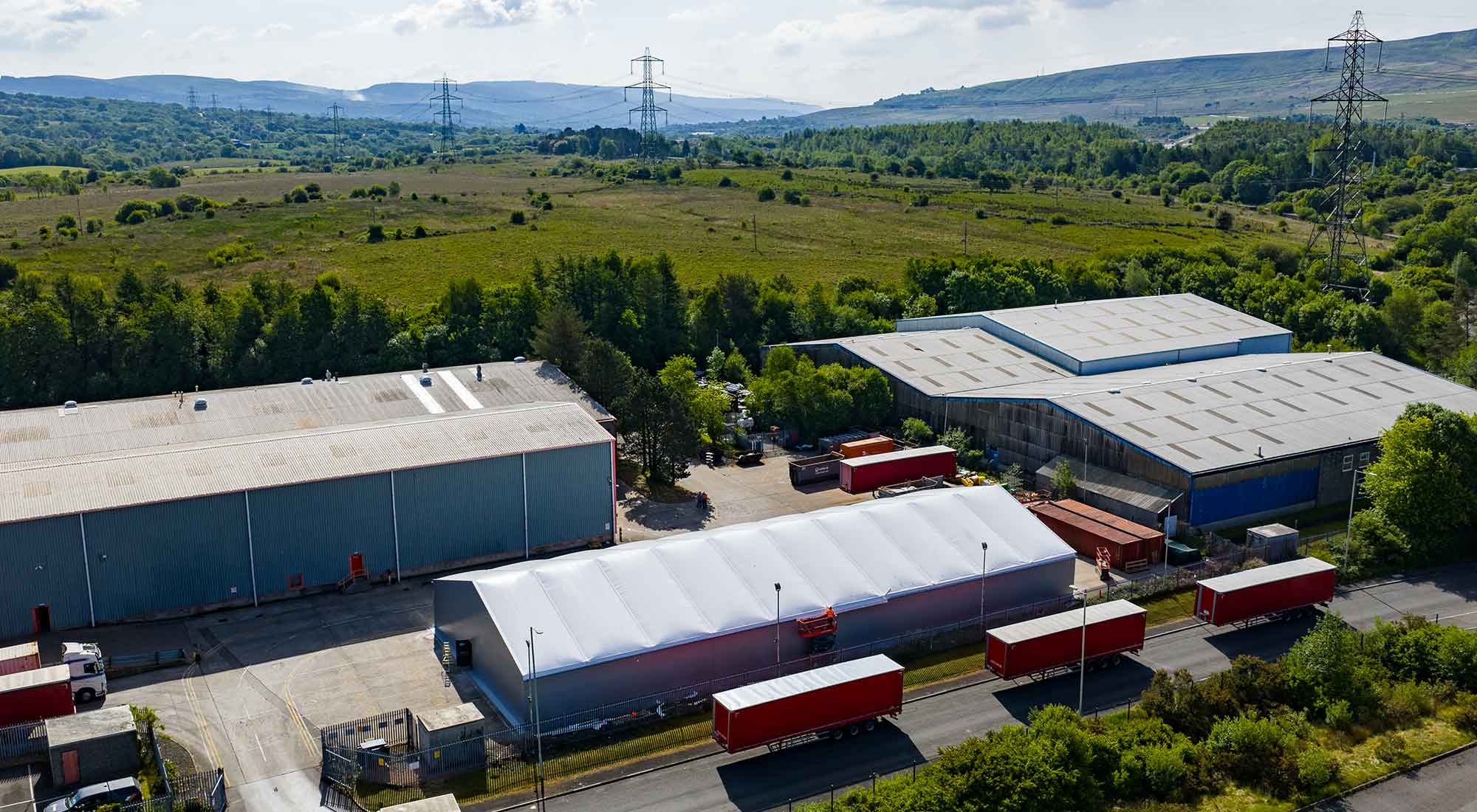

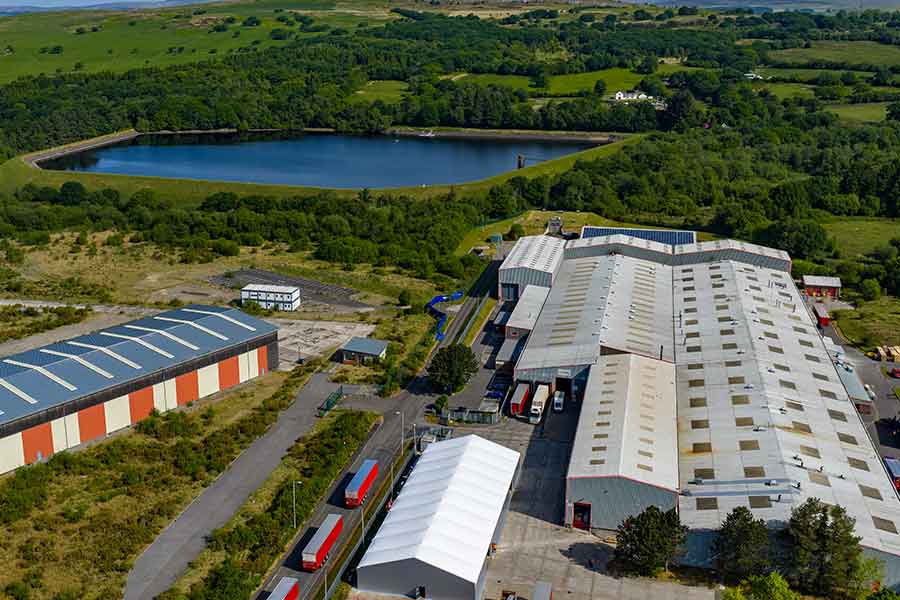

A large retailer in South Wales required extra space at it’s main distribution hub. Fews responded quickly by conducting a site visit and providing a accurate quotation. The main element was to ensure a dry environment for palletised goods ready for dispatch.

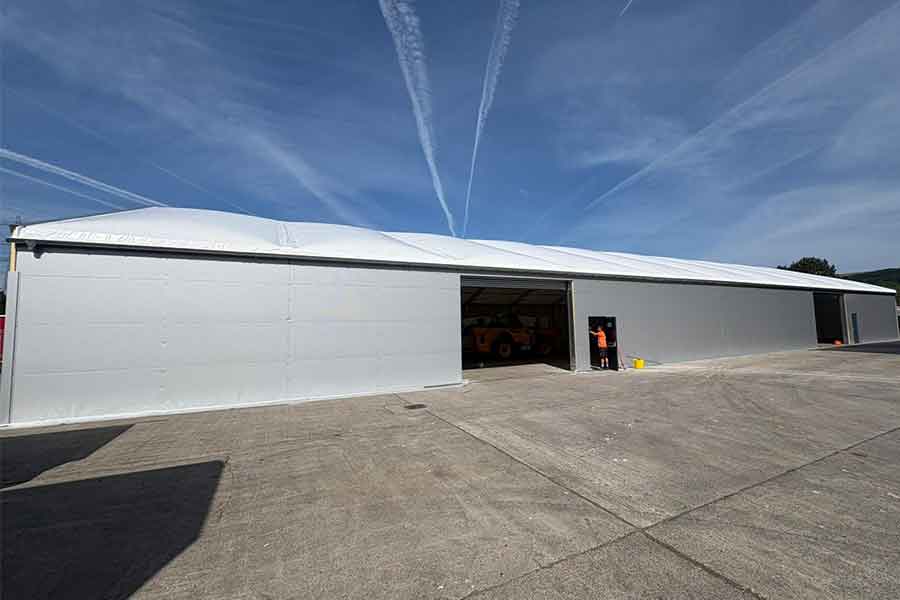

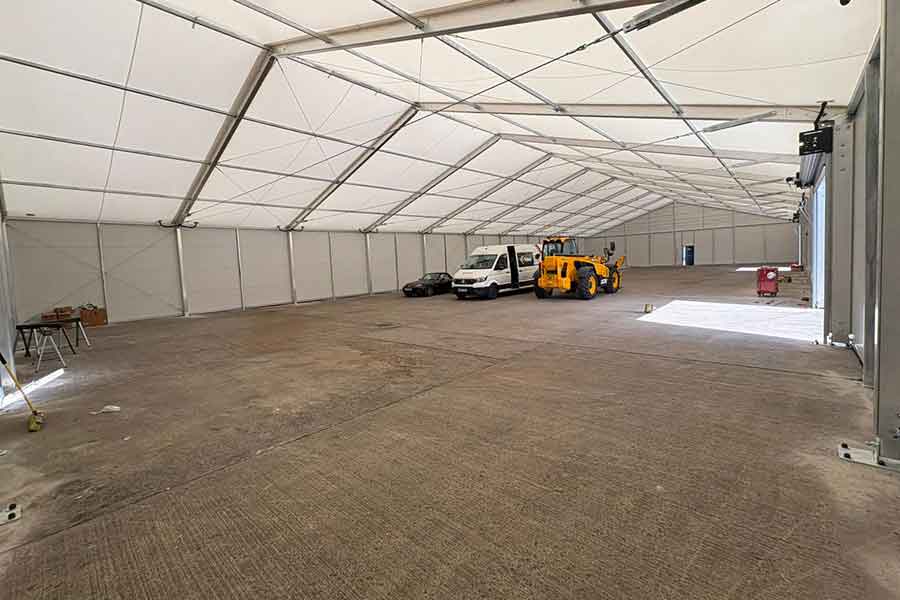

Fews built a clearspan aluminium frame Structure, 20m wide x 49.5m long with 4m side height. The walls were 60mm insulated sandwich panels with an inflatable twin skin PVC roof to minimise condensation and provide insulation.
The project was completed on schedule giving the client the space they needed to continue efficient operations.
Specifications
- Clearspan Aluminium Frame Structure, 20m Wide x 49.5m Long with 4m Side Height
- Bay Length: 5m & 4.5m
- Eave Height: 4m
- Chemical Anchors into Existing Concrete Base
- Thermo Insulated PVC Roof Covers & Gables
- Insulated 60mm Sandwich Panels
- 4.8m Wide x 3.5m Steel Galvanised Roller Shutter Doors with Electronic Operation
- Single Non-Insulated Steel Personnel Doors
- Steel Gutters & Downpipes to Side Elevations
