Temporary Warehouse and Loading Bay Canopy





The requirement

With the acquisition of their new site in Grays, Essex, our client required two buildings to be constructed to serve as a storage warehouse and a loading bay canopy to facilitate the expansion and growth of their business.
Significant clearance was undertaken by the client to completely transform the site. To avoid delays our structures needed to be built during this phase of development which presented a numerous problems.
New groundworks, concrete pads and drainage had to be designed into the programme for works, restricted access around the structure with plant, machinery, cranes and then of course the ever-present challenge of very poor weather and scheduling delays related to the evolution of the site.

The Fews Solution

Fews supplied a 20m x 70m steel walled building with a pillow roof for the storage warehouse and a 15m x 25m structure for the loading bay canopy. A mixture of trapezoidal non-insulated steel sheet walling and 40mm insulated sandwich panel steel walling were used to eave height and all built on an 8m leg to give the necessary height for racking and vehicle access.
Three 5m wide x 7m high roller shutter doors were re-purposed and fitted, with a further 4m high roller door connecting to the loading bay, plus three personnel doors. The structure was sealed to the concrete pad to prevent water ingress and flashings installed to finish the look of the structure.
To ensure the smooth development of the site we provided on site project management throughout the build and planning stages and advised on groundworks, drainage, scheduling, and design options.

Specifications

Warehouse structure

  • Clearspan Aluminium Frame Structure, 20m Wide x 70m Long Structure
    with 8m Side Height
  • Chemical Anchors to each Base Plate
  • Thermo Insulated PVC Roof Covers
  • Trapezoidal Non-Insulated Steel Sheet Walling
  • 4m x 7m Roller Shutter Door
  • Single Personnel Doors
  • Gutters & Downpipes
  • Wind Speed 22m/s (When Fully Enclosed)
  • Snow Load: 0.5kN/m2; EN13782 for temporary structures

Canopy structure

  • Clearspan Aluminium Frame Structure, 15m Wide x 25m Long Structure
    with 8m Side Height
  • Chemical Anchors to each Base Plate
  • Thermo Insulated PVC Roof Covers
  • Insulated 40mm Sandwich Panel Walling
  • 4m x 7m Roller Shutter Door
  • Gutters & Downpipes
  • PVC Gutter to 20m Structure
  • Wind Speed 22m/s (When Fully Enclosed)
  • Snow Load: 0.5kN/m2; EN13782 for temporary structures
Download Our Brochure

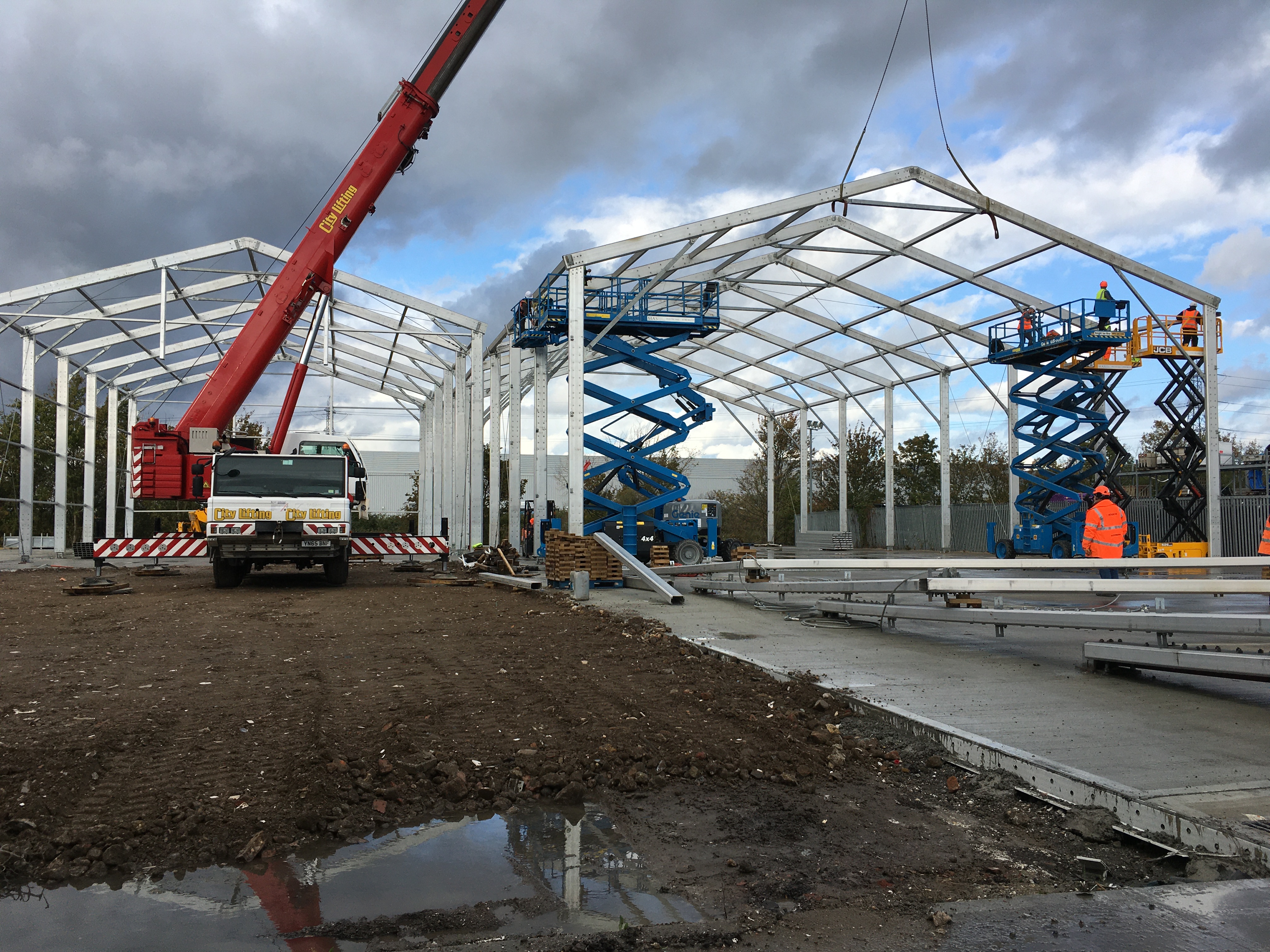

Frame structure being lifted via crane
Aluminium frame structures
Aluminium frame structure with 8m side height
Thermo insulated rooves and insulated sandwich panel walling
